摘要

目录一.自定义工具类定义二.SpringBoot 集成开源缓存组件1.开源缓存组件2.缓存注解3.缓存测试（caffeine）1.Pom依赖2.Yml配置（指定缓存实现类型）3.项目

一.自定义工具类定义

package com.demo.utils;

import org.springframework.util.StringUtils;

import java.util.LinkedList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.*;
import java.util.concurrent.atomic.AtomicInteger;


public class Cache {


    private Cache(){}


    public static final long CACHE_HOLD_TIME_30M = 30 * 60 * 1000L;
    public static final long CACHE_HOLD_TIME_1H = 2 * CACHE_HOLD_TIME_30M;
    public static final long CACHE_HOLD_TIME_24H = 24 * CACHE_HOLD_TIME_1H;
    public static final long CACHE_HOLD_TIME_FOREVER = -1L;


    private static final int CACHE_MAX_CAP = 1000;
    private static final int CLEAN_LRU_CAP = 800;


    private static AtomicInteger CACHE_CURRENT_SIZE = new AtomicInteger(0);


    private static final Map<String,node> CACHE_MAP = new ConcurrentHashMap<>(CACHE_MAX_CAP);


    private static final List<String> LRU_LIST = new LinkedList<>();


    private static volatile boolean CLEAN_RUN_FLAG = false;


    public static void put(String key,Object val){
        put(key,val,CACHE_HOLD_TIME_30M);
    }


    public static void putForever(String key,Object val){
        put(key,val,CACHE_HOLD_TIME_FOREVER);
    }


    public static void put(String key,Object val,long ttlTime){
        if (!StringUtils.hasLength(key) || null == val){
            return;
        }
        checkSize();
        updateCacheLru(key);
        CACHE_MAP.put(key,new Node(val,ttlTime));
    }


    public static <T> T get(String key,Class<T> clazz){
        if (!StringUtils.hasLength(key) || !CACHE_MAP.containsKey(key)){
            return null;
        }
        updateCacheLru(key);
        return (T) CACHE_MAP.get(key).getVal();
    }


    private static void updateCacheLru(String key){
        synchronized (LRU_LIST){
            LRU_LIST.remove(key);
            LRU_LIST.add(0,key);
        }
    }


    private static boolean remove(String key){
        Node node = CACHE_MAP.remove(key);
        if (null!=node){
            CACHE_CURRENT_SIZE.getAndDecrement();
            return true;
        }
        return false;
    }


    private static void checkSize(){
        if (CACHE_CURRENT_SIZE.intValue() > CACHE_MAX_CAP){
            deleteTimeOut();
        }
        if (CACHE_CURRENT_SIZE.intValue() > CLEAN_LRU_CAP){
            deleteLru();
        }
    }


    private static void deleteLru(){
        synchronized (LRU_LIST){
            while (LRU_LIST.size() > CLEAN_LRU_CAP){
                int lastIndex = LRU_LIST.size() - 1;
                String key = LRU_LIST.get(lastIndex);
                if (!CACHE_MAP.get(key).isForever() && remove(key)){
                    LRU_LIST.remove(lastIndex);
                }
            }
        }
    }


    private static void deleteTimeOut(){
        List<String> del = new LinkedList<>();
        for (Map.Entry<String,Node> entry:CACHE_MAP.entrySet()){
            if (entry.getValue().isExpired()){
                del.add(entry.geTKEy());
            }
        }
        for (String k:del){
            remove(k);
        }
    }


    public static boolean contains(String key){
        if (CACHE_MAP.containsKey(key)){
            if (!CACHE_MAP.get(key).isExpired()){
                return true;
            }
            if (remove(key)){
                return false;
            }
            return true;
        }
        return false;
    }


    public static void clear(){
        CACHE_MAP.clear();
        CACHE_CURRENT_SIZE.set(0);
        LRU_LIST.clear();
    }


    public static void setCleanRunFlag(boolean flag){
        CLEAN_RUN_FLAG = flag;
    }


    private static void startAutoClean(){

        if (!CLEAN_RUN_FLAG){
            setCleanRunFlag(true);
            ScheduledExecutorService scheduledExecutor = new ScheduledThreadPoolExecutor(1);
            scheduledExecutor.scheduleAtFixedRate(()->{
                try {
                    Cache.setCleanRunFlag(true);
                    while (CLEAN_RUN_FLAG){
                        Cache.deleteTimeOut();
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            },10,Cache.CACHE_HOLD_TIME_1H, TimeUnit.SECONDS);
        }
    }


    public static class Node{

        private Object val;

        private long ttlTime;

        public Node(Object val,long ttlTime){
            this.val = val;
            if (ttlTime<0){
                this.ttlTime = ttlTime;
            }else{
                this.ttlTime = System.currentTimeMillis() + ttlTime;
            }
        }

        public Object getVal(){
            return this.val;
        }

        public boolean isExpired(){
            if (this.ttlTime<0){
                return false;
            }
            return System.currentTimeMillis() > this.ttlTime;
        }

        public boolean isForever(){
            if (this.ttlTime<0){
                return true;
            }
            return false;
        }

    }


}

二.SpringBoot 集成开源缓存组件

1.开源缓存组件

缓存组件	类型
HAZELCAST	分布式缓存
INFINISPAN	分布式缓存
COUCHBase	分布式缓存
Redis	分布式缓存
CAFFEINE	本地缓存
CACHE2K	本地缓存

随着硬件系统系统扩展和软件升级，缓存在应用中的地位和可应用性日渐提升，SpringBoot 为此设计了一套通用缓存机制（规范）
此规范设计了两个顶层接口 Cache 和 CacheManager 即缓存和缓存管理，通过实现CacheManager 引入缓存组件，即可在SpringBoot项目内通过注解方便的设置缓存

通过 SpringBoot 的缓存自动配置类，查看其可支持哪些缓存组件的使用，部分源码如下：

//org.springframework.boot.autoconfigure.cache.CacheConfigurations
static {
    Map<CacheType, String> mappings = new EnumMap<>(CacheType.class);
    mappings.put(CacheType.GENERIC, GenericCacheConfiguration.class.getName());
    mappings.put(CacheType.HAZELCAST, HazelcastCacheConfiguration.class.getName());
    mappings.put(CacheType.INFINISPAN, InfinispanCacheConfiguration.class.getName());
    mappings.put(CacheType.JCACHE, JCacheCacheConfiguration.class.getName());
    mappings.put(CacheType.COUCHBASE, CouchbaseCacheConfiguration.class.getName());
    mappings.put(CacheType.REDIS, RedisCacheConfiguration.class.getName());
    mappings.put(CacheType.CAFFEINE, CaffeineCacheConfiguration.class.getName());
    mappings.put(CacheType.CACHE2K, Cache2kCacheConfiguration.class.getName());
    mappings.put(CacheType.SIMPLE, SimpleCacheConfiguration.class.getName());
    mappings.put(CacheType.NONE, NoOpCacheConfiguration.class.getName());
    MAPPINGS = Collections.unmodifiableMap(mappings);
}

2.缓存注解

注解	功能
@EenableCacheing	启用注解式缓存的功能，一般加在项目启动类上
@Cacheable	如果存在缓存，则返回缓存信息；不存在则获取值并添加到缓存
@CachePut	添加缓存，可用于更新方法（强制将方法返回值添加到指定Key）
@CacheEvict	删除缓存
@Caching	打包操作，将上面几种注解打包在一起作用
@CacheConfig	通用配置注解，如果要对某个对象设置缓存，可以将此注解标注在类上设置缓存名、主键生成器等

3.缓存测试（caffeine）

通过 SpringBoot 集成 Caffeine 进行缓存注解演示，相关版本信息参考依赖

1.Pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="Http://Maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>LenovoTest</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>19</maven.compiler.source>
        <maven.compiler.target>19</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>3.0.0</spring.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-WEB</artifactId>
            <version>${spring.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-cache</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>com.GitHub.ben-manes.caffeine</groupId>
            <artifactId>caffeine</artifactId>
            <version>3.1.2</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.24</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastJSON</artifactId>
            <version>2.0.14.graal</version>
        </dependency>
    </dependencies>
</project>

2.Yml配置（指定缓存实现类型）

server:
  port: 8088

spring:
  cache:
   type: caffeine

custom-caffeine:
  specs:
    ## 用户信息写入10S后过期
    userInfo: maximumSize=10,expireAfterWrite=10s
    ## 登陆信息写入5S后过期
    accessInfo: maximumSize=10,expireAfterWrite=5s

3.项目启动类

package com.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cache.annotation.EnableCaching;


@EnableCaching
@SpringBootApplication
public class TestApplication {

    public static void main(String[] args) {
        SpringApplication.run(TestApplication.class,args);
    }
}

4.自定义缓存配置

如果不通过Yml指定缓存实现类型，则将使用默认实现

package com.demo.comfig;

import com.github.benmanes.caffeine.cache.Caffeine;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.cache.CacheAutoConfiguration;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.cache.CacheManager;
import org.springframework.cache.caffeine.CaffeineCacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;


@Configuration
public class CustomCaffeineConfig {


    @Bean(name = "caffeineProperties")
    @ConfigurationProperties(prefix = "custom-caffeine.specs")
    public Map<String,String> caffeineProperties(){
        return new HashMap(16);
    }


    @Bean
    @Primary
    public CacheManager caffeineManager(@Qualifier("caffeineProperties") Map<String,String> properties){

        CaffeineCacheManager manager = new CaffeineCacheManager();
        Map.Entry<String,String> entry;
        Iterator<Map.Entry<String,String>> iterator = properties.entrySet().iterator();
        while (iterator.hasNext()){
            entry = iterator.next();
            manager.reGISterCustomCache(entry.getKey(), Caffeine.from(entry.getValue()).build());
        }
        return manager;
    }
}

5.测试类

定义一个 User 对象

package com.demo.entity;

import lombok.Data;


@Data
public class UserInfo {
    private String name;
    private String account;
    private long age;
}

定义一个 Controller 类用于测试

package com.demo.controller;

import com.demo.entity.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.Cache;
import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;



@RestController
@RequestMapping("/test")
public class TestController {


    @Autowired
    CacheManager cacheManager;

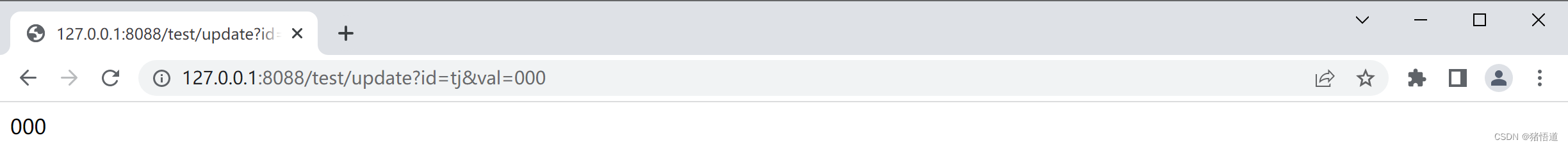

    @GetMapping("/update")
    @CachePut(cacheNames = "test" ,key = "#id")
    public String update(String id,String val){
        //TODO Query Data By @{id}
        return val;
    }

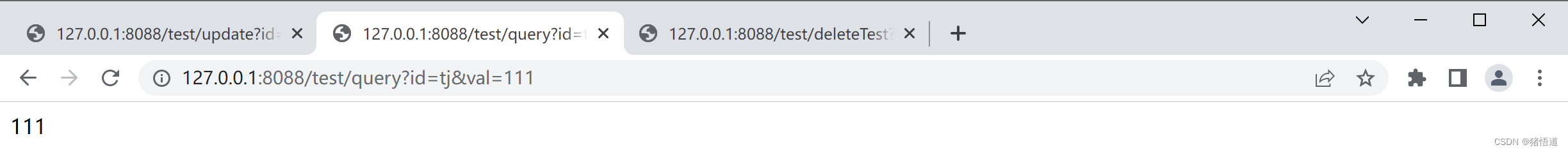

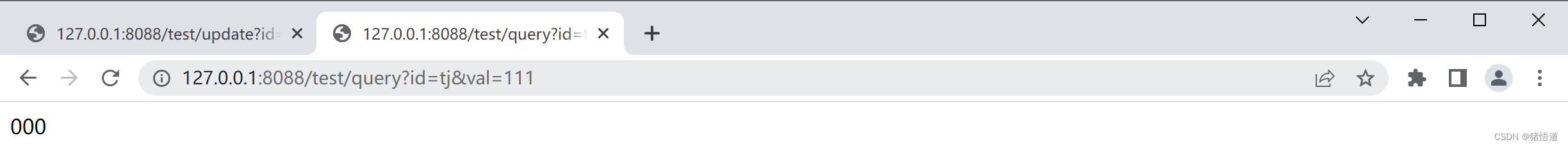

    @GetMapping("/query")
    @Cacheable(cacheNames = "test" ,key = "#id" )
    public String query(String id,String val){
        //TODO Query Data By @{id}
        return val;
    }

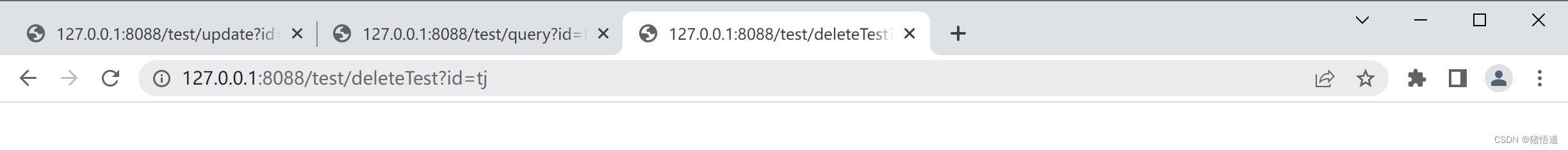

    @GetMapping("/deleteTest")
    @CacheEvict(cacheNames = "test",key = "#id")
    public void deleteTest(String id){
    }


    @GetMapping("/deleteByNameAndKet")
    public void deleteByNameAndKet(String cacheNames,String id){
        Cache cache = cacheManager.getCache(cacheNames);
        cache.evict(id);
    }

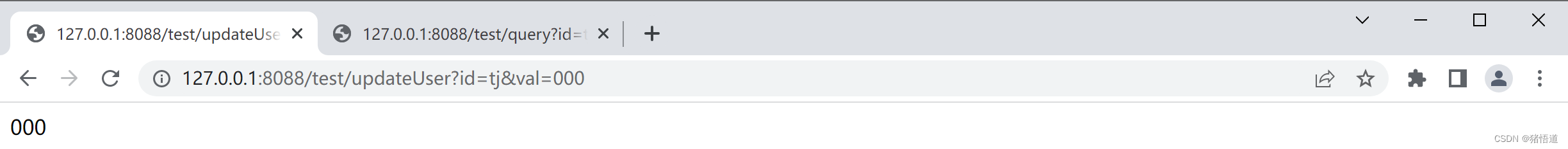

    @GetMapping("/updateUser")
    @CachePut(cacheNames = "userInfo" ,key = "#id")
    public String updateUser(String id,String val){
        return val;
    }

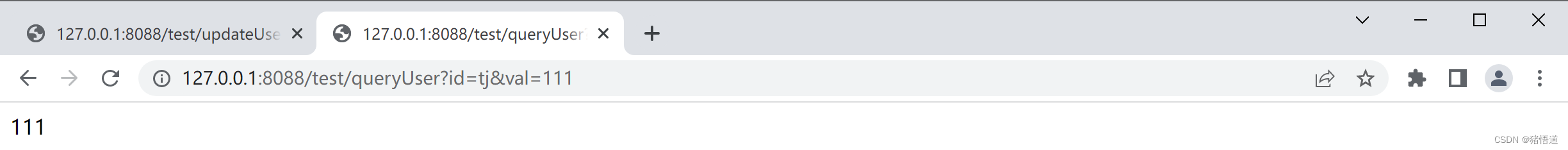

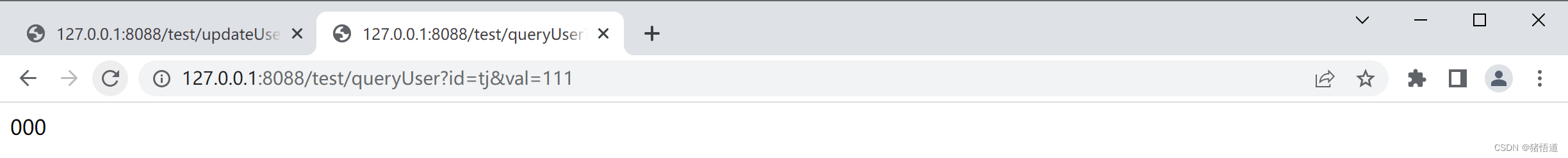

    @GetMapping("/queryUser")
    @Cacheable(cacheNames = "userInfo" ,key = "#id")
    public String queryUser(String id,String val){
        return val;
    }

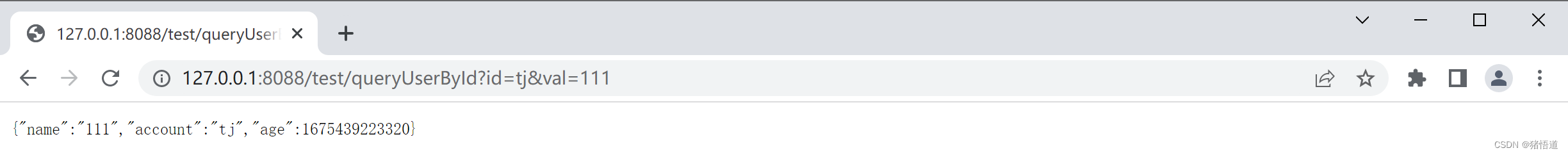

    @GetMapping("/queryUserById")
    @Cacheable(cacheNames = "userInfo" ,key = "#id")
    public UserInfo getUserInfo(String id,String val){
        UserInfo info = new UserInfo();
        info.setAccount(id);
        info.setName(val);
        info.setAge(System.currentTimeMillis());
        return info;
    }

}
